| Platform Diameter | 46" (116 cm) |
|---|---|
| Platform Height | 8.5" (18 cm) |
| Platform Weight | 126 lbs (57 kgs) |
| Max Occupancy | 4-5 People or 1,500 pounds (680 kgs) |
| Max Camera Weight | 8 lbs (3.6 kg) |
| Arm Head | Mates with industry-standard Arca-Swiss camera plates and mounts |
| Camera Mount | Attaches to cameras with 1/4-20 threaded inserts (such as GoPros and many DSLRs) |
| Phone Mount | Secures phones 2.6 - 4.2 inches wide (66-106 mm) in horizontal position |
| Rotation Speed | 6-30 RPM or 2-10 seconds per rotation |
| Stabilization Tech | Decoupled arm technology that provides nearly-perfectly stabilized orbiting video footage |
| Control Options | Wired Foot Switch | Wireless Key Fob | Bluetooth via App |
| Power Source | 120-240 VAC, 50/60 hertz (US 2-Prong Plug) | V-Mount battery option available |
| Cord Lengths | Power - 15 ft (4.57 m) | Foot Switch - 11 ft (3.35 m) |
| Footprint | 10 ft x 10 ft (3.0 m x 3.0 m) suggested |
| Warranty Period | One Year |
SALE!

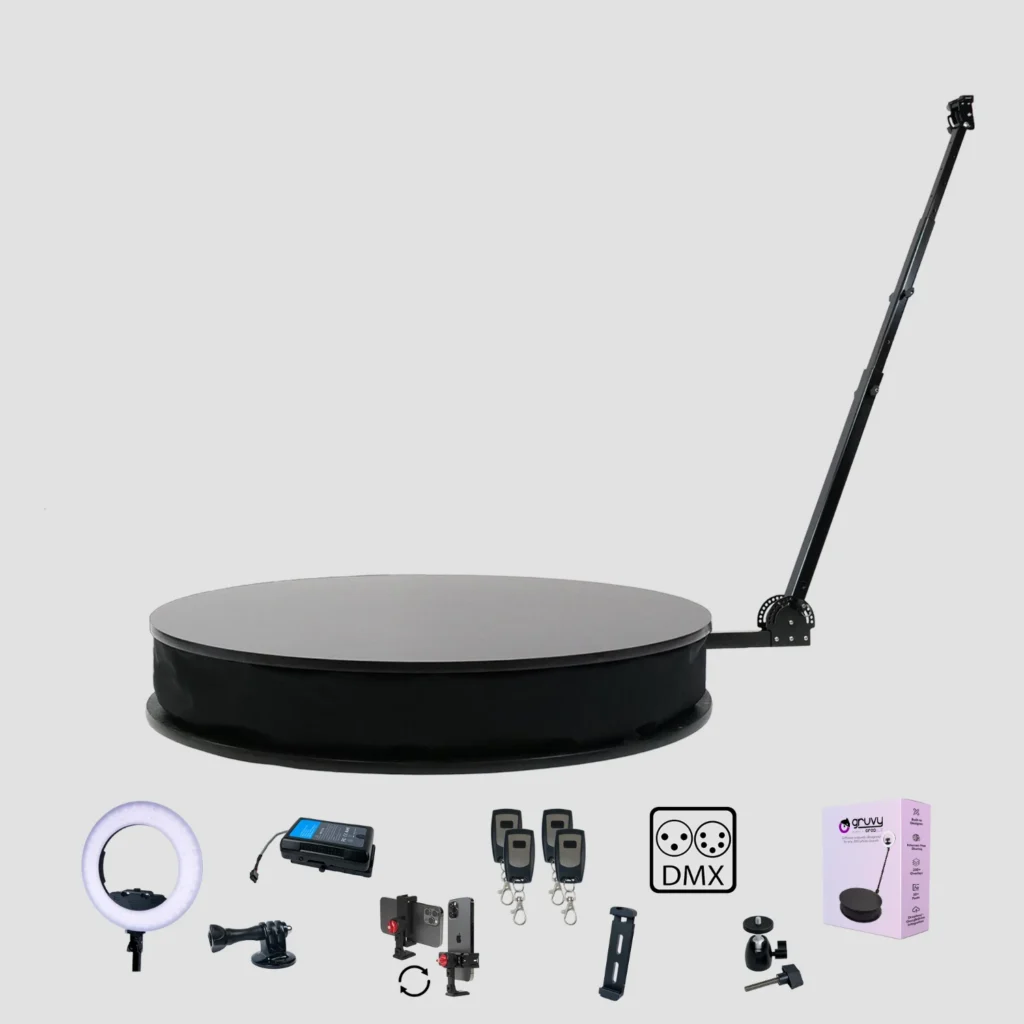

XL 360 Photo Booth – Pro Bundle
Original price was: $5,990.00.$5,490.00Current price is: $5,490.00.
The XL 360 Photo Booth Pro Bundle has everything you need to execute events at the highest level. An independent set of legs supports the arm and isolates it from platform movement, allowing non-image-stabilized cameras to be used. The heavy-duty arm and counterweights support larger and heavier cameras. This is the booth used in studios, at red carpet events, and by large event operators. It includes an unfinished plywood case suitable for forklifts and shipping. Or attach the included wheels for easy portability on site.
The package includes our basic XL 360 photo booth plus an 18″ ring light, a battery system that powers the unit for 500+ sessions over a ten hour period, two additional key fob remotes, DMX control of special-effects devices, a rotating metal phone mount for horizontal and vertical smartphone mounting, tablet mount, GoPro mount, an accessory mount, and a three-month subscription to the Gruvy 360 photo booth app (requires an iOS device). More details on each of these items can be found below.
The XL unit itself features:
- 46″ Platform
- 1,500 pound capacity
- 4-5 person capacity
- Motorized (automatic) arm
- Decoupled arm technology that provides near-complete isolation of the arm from the platform
- Compatible with all types cameras, including those without built-in image stabilization
- Wirelessly start/stop arm using four included remotes
- Bluetooth integrations with TouchPix, SnapPic, Curator, and Gruvy allow apps to directly control arm
- Syncs DMX devices such as confetti/fog machines with recordings
- Electronic control maintains speed within safe limits
- Safe-stop feature instantly halts arm if obstructed
- Return-to-home function repositions arm in same location
- Includes rotating phone mount, GoPro mount, & accessory mount
- Included dolly makes transportation a breeze
- 10′ x 10′ suggested footprint
- One-year warranty covers manufacturer defects (but not normal wear and tear)
- Telephone hardware support weekdays 9AM – 5PM EST
- Built with American labor in our Washington, DC factory
- Includes marketing videos with your logo and a contract template
- Free Shipping*
PLATFORM SPECS:
- Diameter: 46″ (116 cm)
- Height: 8.5″ (18 cm)
- Weight: 126 lbs (57 kgs)
- Download complete spec sheet
INCLUDES:
WHY ORCAVUE 360 BOOTHS?
Run Completely Wirelessly
Battery option available to keep your OrcaVue operating for over 10 hours.
Automatic or Manual Operation
Forgot your power cord? Switch to manual at anytime.
Sync with Special Effects Machines
Exclusive DMX controller provides perfect timing with confetti/fog machines.
60-Second Set Up
Time is money. Fully setup in under a minute.
The OGs
Inventors of the 360 photo booth with 10 years of first-hand experience at thousands of events.
Safety Stop
Auto stops when obstruction encountered, avoiding damage to unit and property.
Integrates with Leading Software Packages
Let your favorite app control your OrcaVue and provide seamless operation.
Industry-Leading Capacity of 1,200 LBS
Industrial welded-steel frame keeps your events worry-free
- Fully-assembled platform
- Multi-jointed telescoping camera arm with universal head
- Controller with speed monitoring and arm obstruction detection
- Ring light kit (includes four batteries and charger)
- V-mount battery with charger
- Camera plate with 1/4-20 screw
- Rotating metal phone mount
- Tablet mount
- GoPro mount
- Accessory mount
- Four Counterweights
- Canvas Arm Bag
- Canvas Accessory Bag
- Four key fobs for wireless operation
- AC power cord (15 ft / 4.57 m)
- Wheeled transport dolly
- Reusable crate
- Three-month subscription to the Gruvy 360 photo booth app (requires an iOS device)
| Weight | 230 lbs |
|---|---|
| Dimensions | 48 × 48 × 15 in |
| Method | FedEx Freight (included at no charge to lower 48 states) |
How To Videos
The Features, Tutorials, How-Tos, and Walk-Throughs you need to get started.
OrcaVue 360 Booth Features
OrcaVue XL Assembly Video
The OrcaVue XL 360 Orbiting camera rig makes the cinematic bullet time effect available for professional video shoots and large-scale photo booth activations. The largest, and most durable of the OrcaVue models, the XL’s flawless design makes this unit easy to use, and quick to set up with no tools required, while being able to accommodate up to 5 guests at a time with improved anti-shake technology.
Obstructions and Auto Stop Feature
All OrcaVue 360 photo booths are programmed to automatically stop if the arm is obstructed without damaging the motor. Worry less about damaging your unit or property and more about your event!
OrcaVue 360 Booth Tutorials
Controller Walk-Though
Explore the front panel options of the controller used on the OrcaVue Air 360 photo booths.
Using the Battery Option
Learn how to run OrcaVue 360 photo booths on battery power. Units using the battery can run over 500 sessions in a 10 hour period on a single charge.
How To Use DMX
Learn how to configure DMX special effects devices for use with an OrcaVue 360 photo booth. Enables the same shot to be reliably captured time-after-time. Note: DMX is an optional feature.
How to Add an Extra Wireless Remote (Key Fob)
Learn how to sync a replacement key fob with your OrcaVue Air 360 photo booth.
Rectangular Light Setup
Learn how to setup and use the rectangular light option with an OrcaVue 360 photo booth.
Gruvy 360 Photo Booth App Tutorials
Create Your First Event
Follow along as we walk you through the screens and options on your way to creating your first event with our Gruvy 360 Photo Booth app. Learn more at orcavue.com or getgruvy.com!
Control The OrcaVue Arm Through Gruvy
Follow along as we walk you through the screens and options on your way to creating your first event with our Gruvy 360 Photo Booth app. Learn more at orcavue.com or getgruvy.com!
