Air-46 360 Photo Booth – Essentials Bundle


The Essentials bundle includes our basic Air package plus a three-month subscription to the Gruvy 360 photo booth app (requires an iOS device), a battery system that powers the unit for 500+ sessions over a ten hour period, a rectangular ring light and a GoPro mount. Note: the rectangular light is not large enough to work with iPads.

  • 46″ Platform
  • 1,200 pound capacity
  • Motorized (automatic) arm
  • Quick-release clips on arm enable fast and easy setup
  • Wirelessly start/stop arm using included remotes
  • Bluetooth integrations with TouchPix, SnapPic, Curator, and Gruvy allow apps to directly control arm
  • Syncs DMX devices such as confetti/fog machines with recordings (optional add-on)
  • Electronic control maintains speed within safe limits
  • Safe-stop feature instantly halts arm if obstructed
  • Return-to-home function repositions arm in same location
  • Includes all-metal horizontal phone mount & GoPro mount
  • Convenient canvas cover protects unit and includes pockets for arm and accessories
  • Included dolly makes transportation a breeze
  • Complete set of “How-To” videos provide details on all aspects of the Air and its many features
  • 10′ x 10′ suggested footprint
  • One-year warranty covers manufacturer defects (but not normal wear and tear)
  • Telephone hardware support weekdays 9AM – 6PM EST
  • Built with American labor in our Washington, DC factory
  • Includes marketing videos with your logo and photo booth contract template
  • Free Shipping*


  • Diameter: 46″ (116 cm)
  • Height:  7.25″ (18 cm)
  • Weight: 93 lbs (42 kgs)

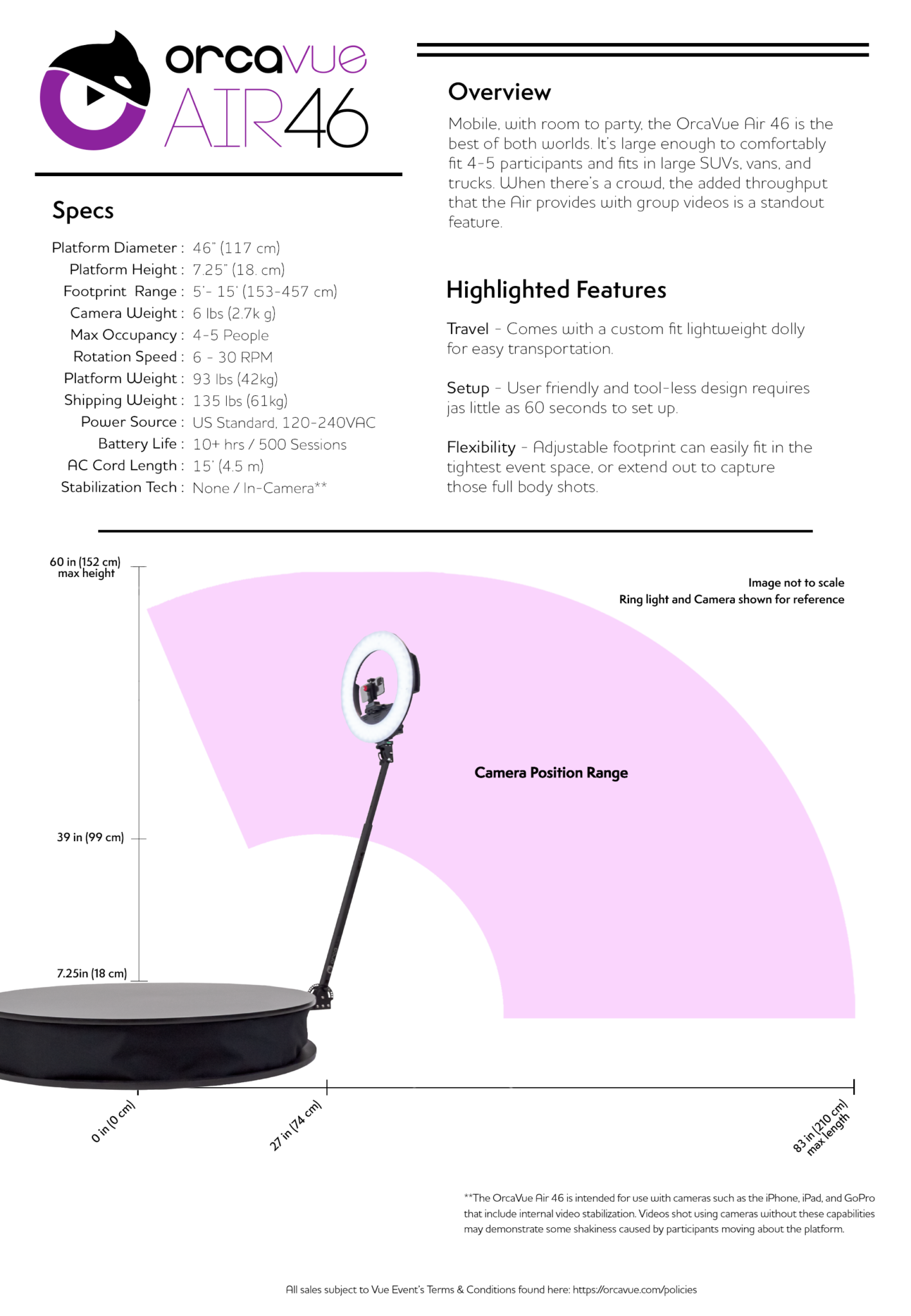

  • Download complete spec sheet

Rectangular Light

  • Mounts horizontally or vertically
  • Diffuse light compliments subjects
  • Variable intensity
  • Adjustable color temperature (2500-8500k)
  • Outer dimension:  11.375 inches (29 cm) x 8.625 inches (22 cm)
  • Inner dimension:  8.625 inches (22 cm) x 4.5 inches (11.5 cm)
  • NOTE: Tablet mount and iPads are not compatible with this light

Motor Battery Kit

  • Powers arm when AC power not available
  • Speeds setup; removes need to tape down cord
  • Handles 500+ sessions over a 10 hour period


  • One 95Wh battery
  • Battery charger
  • Plate and wire harness (pre-installed if ordered with unit)

GoPro Mount

GoPro mount connects camera to any 1/4-20 screw such as the one in camera pate or ring light.


Wireless Icon for 360 Photo Booth

Run Completely Wirelessly

Battery option available to keep your OrcaVue operating for over 10 hours.

Automatic Icon for 360 Photo Booth

Automatic or Manual Operation

Forgot your power cord? Switch to manual at anytime.

DMX Icon for 360 Photo Booth

Sync with Special Effects Machines

Exclusive DMX controller provides perfect timing with confetti/fog machines.

60 Second Icon for 360 Photo Booth

60-Second Set Up

Time is money. Fully setup in under a minute.

Crown Icon for 360 Photo Booth

The OGs

Inventors of the 360 photo booth with 10 years of first-hand experience at thousands of events.

Autostop Icon for 360 Photo Booth

Safety Stop

Auto stops when obstruction encountered, avoiding damage to unit and property.

Software Icon for 360 Photo Booth

Integrates with Leading Software Packages

Let your favorite app control your OrcaVue and provide seamless operation.

Weight Icon for 360 Photo Booth

Industry-Leading Capacity of 1,200 LBS

Industrial welded-steel frame keeps your events worry-free

Platform Diameter46" (116 cm)
Platform Height7.25" (18 cm)
Platform Weight93 lbs (42 kgs)
Max Occupancy4-5 People or 1,200 pounds (544 kgs)
Max Camera Weight6 lbs (2.7 kg)
Arm HeadMates with industry-standard Arca-Swiss camera plates and mounts
Camera MountAttaches to cameras with 1/4-20 threaded inserts (such as GoPros and many DSLRs)
Phone MountSecures phones 2.6 - 4.2 inches wide (66-106 mm) in horizontal position
Rotation Speed6-30 RPM or 2-10 seconds per rotation
Stabilization TechNone/In-Camera
Control OptionsWired Foot Switch | Wireless Key Fob | Bluetooth via App
Power Source120-240 VAC, 50/60 hertz (US 2-Prong Plug) | V-Mount battery option available
Cord LengthsPower - 15 ft (4.57 m) | Foot Switch - 11 ft (3.35 m)
Footprint10 ft x 10 ft (3.0 m x 3.0 m) suggested
Warranty PeriodOne Year
  • Fully assembled platform with electronic speed controller
  • Multi-jointed telescoping camera arm with universal head
  • Canvas case with compartments for arm and accessories
  • Rectangular ring light
  • V-mount battery with charger
  • Camera plate with 1/4-20 screw
  • All-metal horizontal phone mount
  • GoPro mount
  • Two key fobs for wireless operation
  • AC power cord (15 ft / 4.57 m)
  • Wheeled transport dolly
  • Three-month subscription to the Gruvy 360 photo booth app (requires an iOS device)
Weight135 lbs
Dimensions48 × 48 × 16 in
MethodFedEx Freight (included at no charge to lower 48 states)

How To Videos

The Features, Tutorials, How-Tos, and Walk-Throughs you need to get started.

OrcaVue 360 Booth Features

Set Up an OrcaVue Air in 60 Seconds!

It only takes 60 seconds to set up an OrcaVue Air 360 photo booth. Everything from the easily removed cover to an arm with quick-release clips to a battery that last for 10 hours makes load-in and load-out a breeze. Save time (and money) with an OrcaVue Air.

Obstructions and Auto Stop Feature

All OrcaVue 360 photo booths are programmed to automatically stop if the arm is obstructed without damaging the motor. Worry less about damaging your unit or property and more about your event!

OrcaVue 360 Booth Tutorials

Controller Walk-Though

Explore the front panel options of the controller used on the OrcaVue Air 360 photo booths.

How To use your Dolly (Properly!)

Learn how to easily load an OrcaVue 360 photo booth onto and off of the dolly.

Loading & Unloading from your Vehicle

Move the Air 360 into and out of your vehicle with the least mount of effort.

Using the Battery Option

Learn how to run OrcaVue 360 photo booths on battery power. Units using the battery can run over 500 sessions in a 10 hour period on a single charge.

How To Set Up The Arm

Learn how to quickly attach the arm, run cables internally, and attach additional devices to it.

How To Use DMX

Learn how to configure DMX special effects devices for use with an OrcaVue 360 photo booth. Enables the same shot to be reliably captured time-after-time. Note: DMX is an optional feature.

How to Add an Extra Wireless Remote (Key Fob)

Learn how to sync a replacement key fob with your OrcaVue Air 360 photo booth.

Switch Between Automatic and Manual

Learn how to run OrcaVue Air 360 photo booths in automatic or manual mode.

Rectangular Light Setup

Learn how to setup and use the rectangular light option with an OrcaVue 360 photo booth.

Gruvy 360 Photo Booth App Tutorials

Create Your First Event

Follow along as we walk you through the screens and options on your way to creating your first event with our Gruvy 360 Photo Booth app. Learn more at or!

Control The OrcaVue Arm Through Gruvy

Follow along as we walk you through the screens and options on your way to creating your first event with our Gruvy 360 Photo Booth app. Learn more at or!
